EBA 551
Category:
Guillotines and peripherals
Guillotines

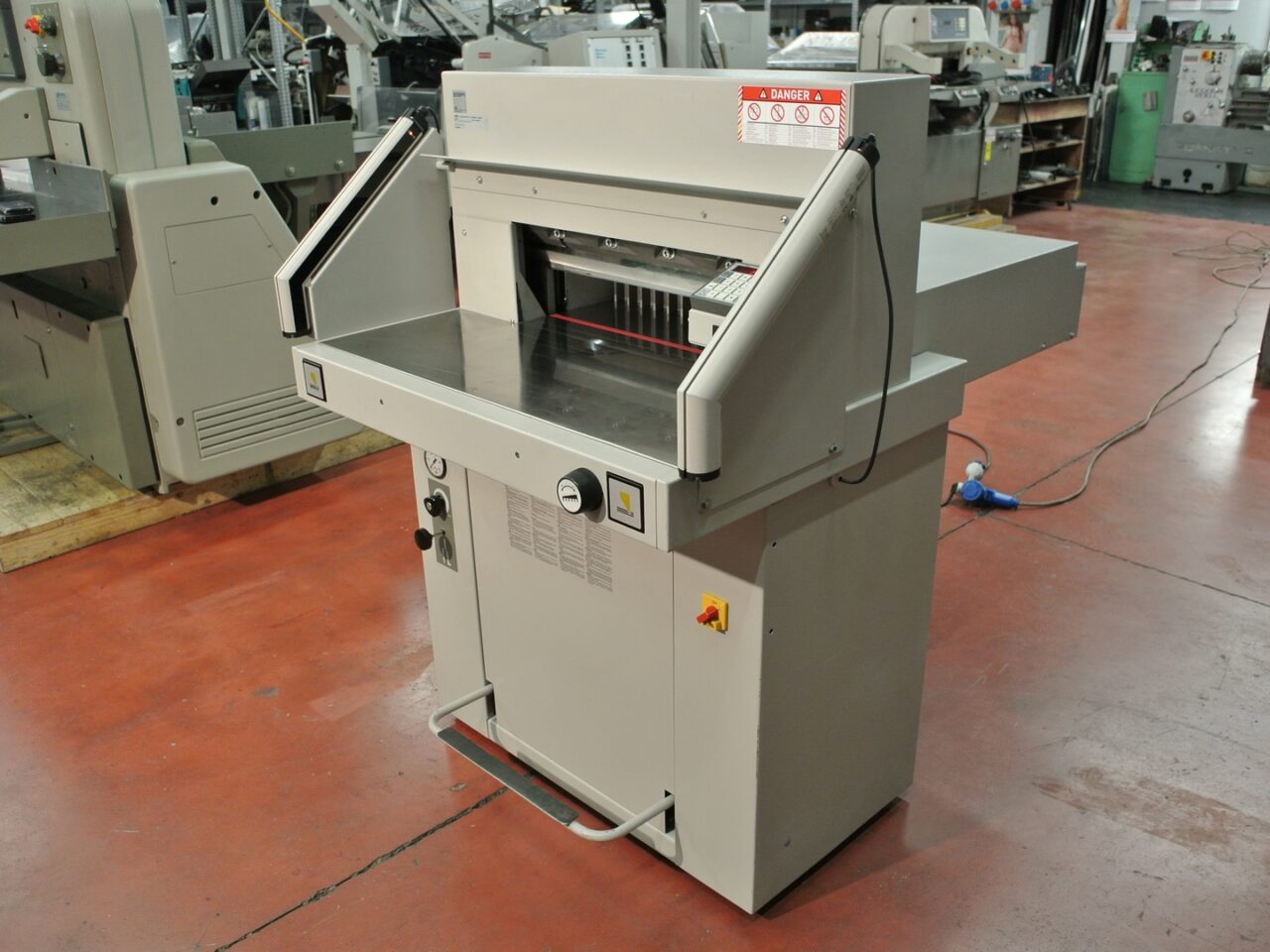

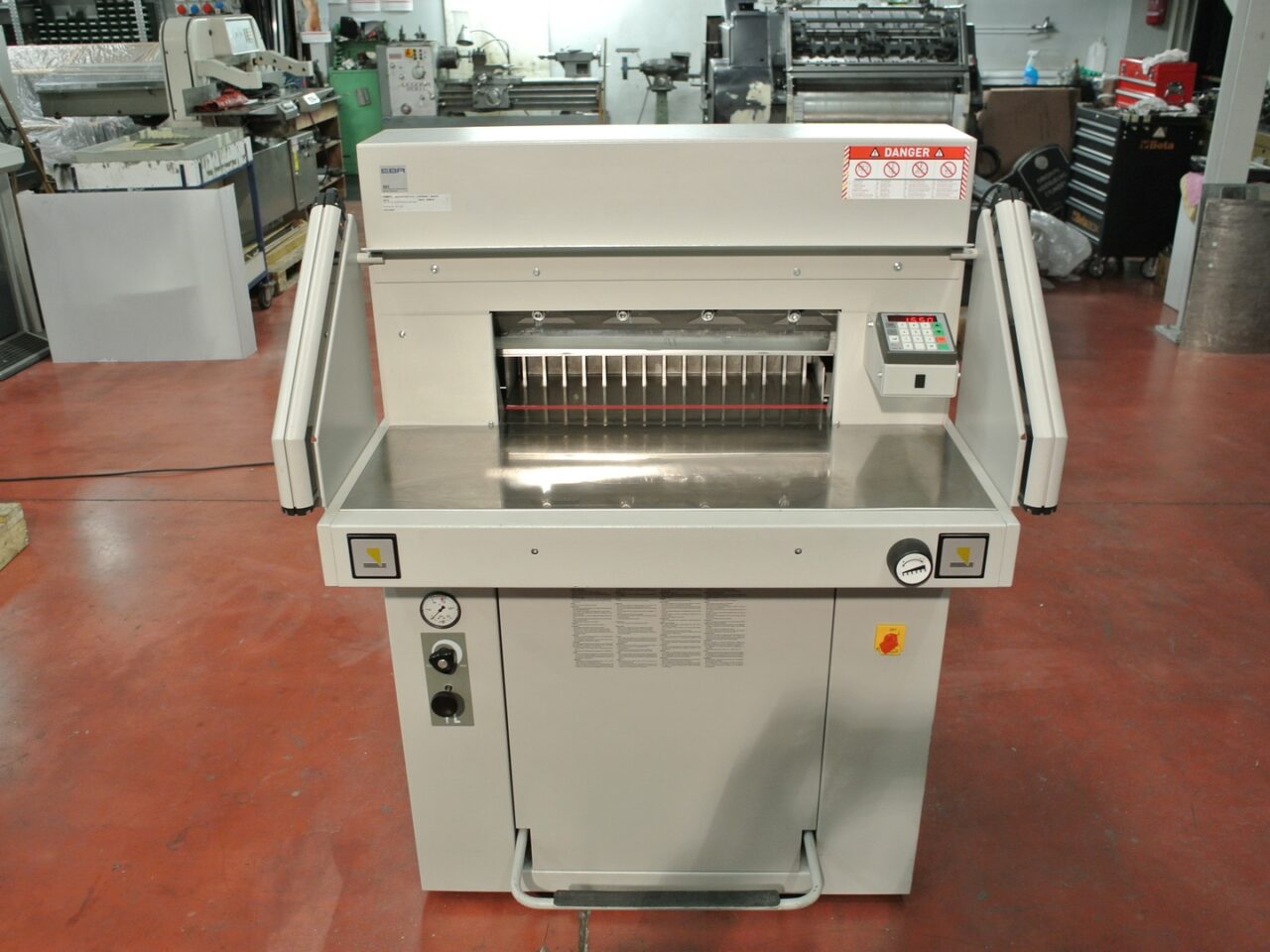

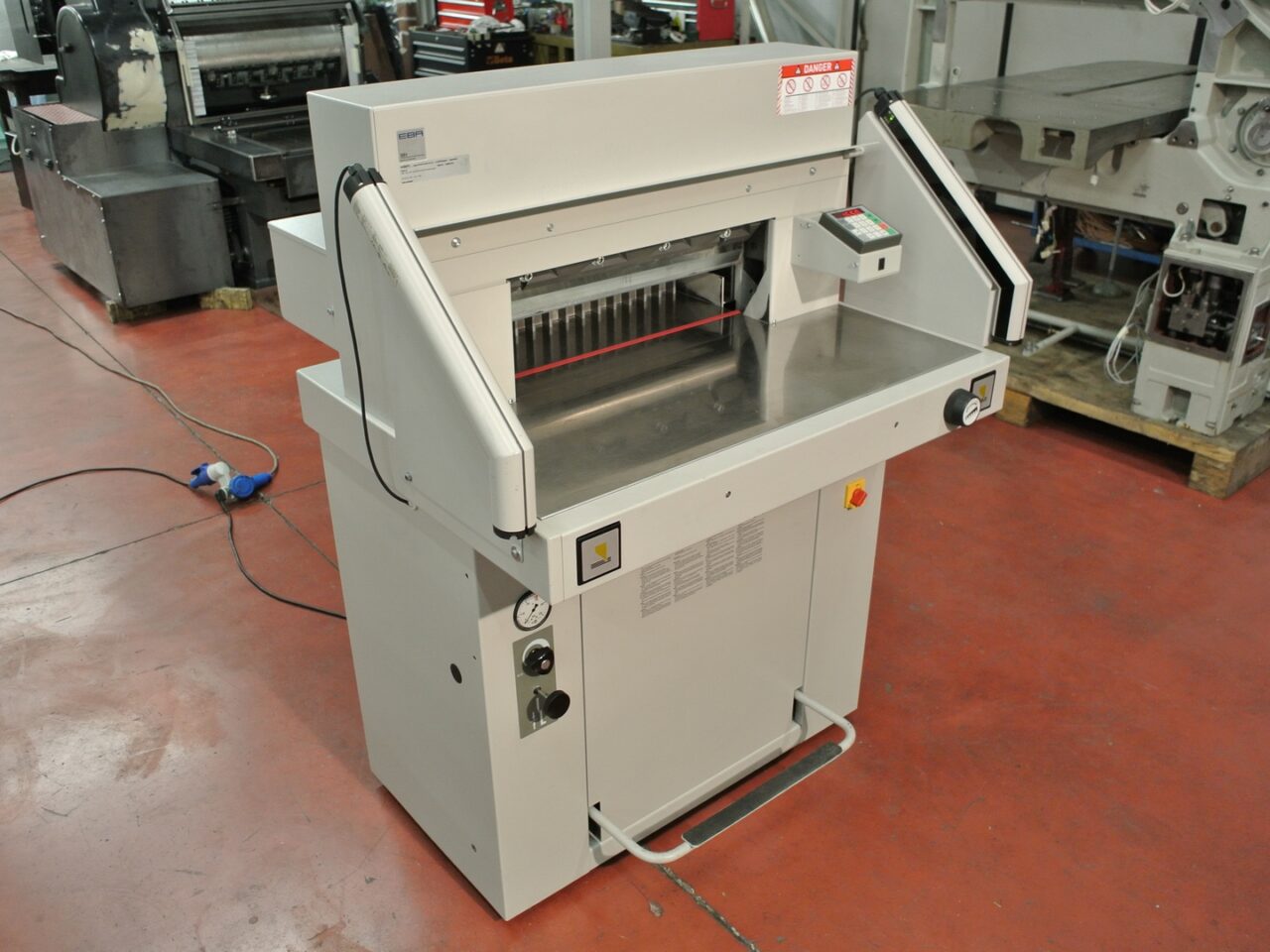

EBA 55 cm, with hydraulic press and advancement of the rear square electrically controlled via the keypad.
Technical Featured
- 550 mm
- Maximum rear depth 570 mm
- Maximum cutting thickness 95 mm
- Minimum cut 32 mm
- Safety cover on the front and rear of the machine
- Low voltage drive commands (24 V according to regulations)
- Automatic blade return
- Disc brake for immediate stopping of the blade
- Main switch and key operated safety key switch
- Automatic descent of the tamper
- Mechanical pedal to activate the descent of the tamper and verify the exact cutting point
- Hydraulic tamper (min. 200 / max. 1100 daN)

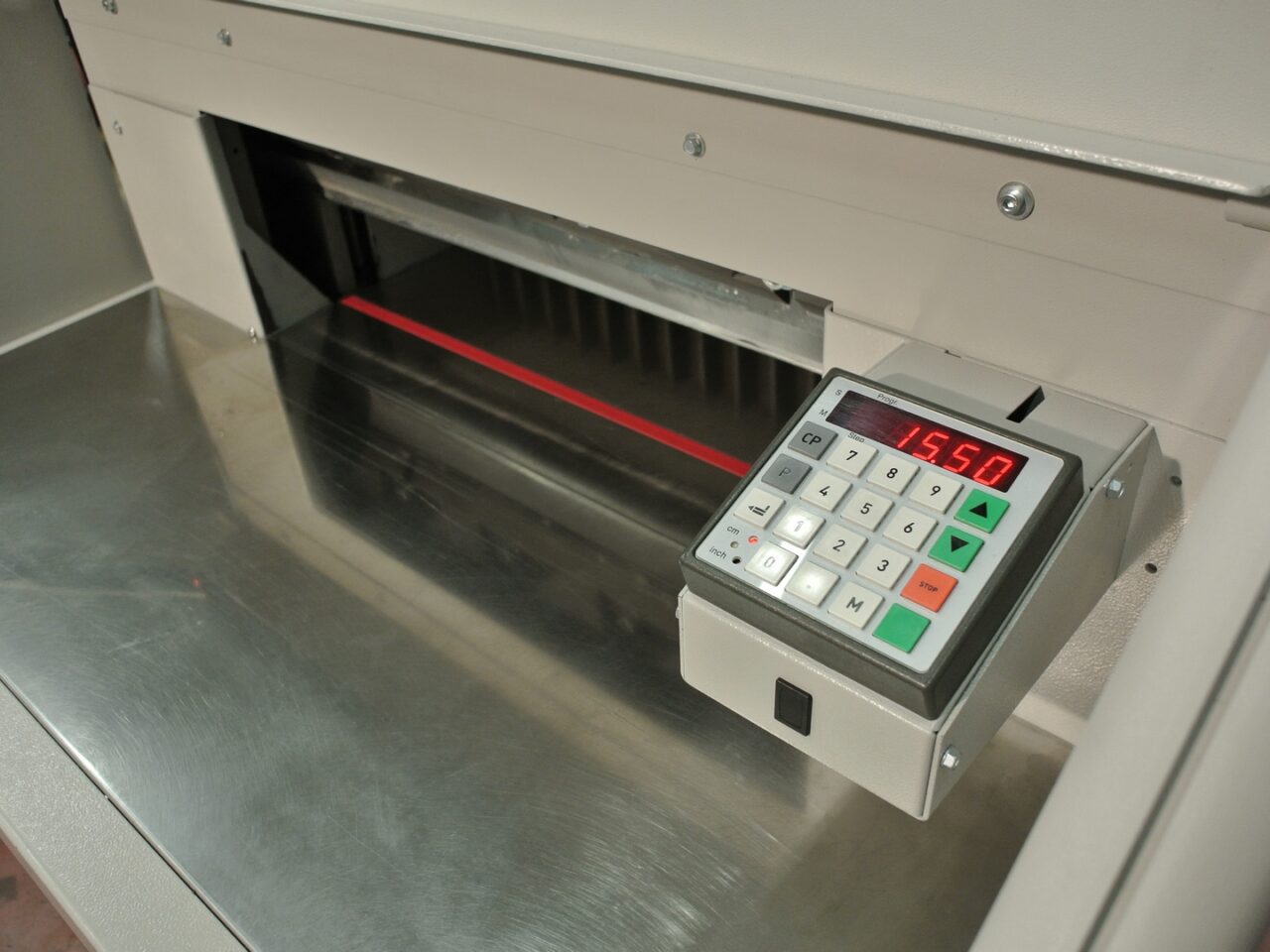

- Advancement of the rear team electrically controlled via the keypad.
- Solid German steel blade with externally adjustable travel height
- Power supply 220 V
- Size (L×L×H) 137×107×140 cm
- Weight 369 Kg
- CE compliance
